| SPECIFICATION | DESCRIPTION |
|---|---|
| IP Channels | 4 |
| Max Resolution | 4K Ultra HD |
| Max Incoming Bandwidth | 80Mbps |
| Max Outgoing Bandwidth | 64Mbps |
| Video Compression | Ultra H.265|H.265|H.264 |
| Hard Drive Slots | 1 |
| Hard Drive Capacity | Up to 8TB each |
| Synchronus Playback | 4ch |
| Audio I/O | 0ch / 1ch |
| Onvif Compatible | Yes |
| Power Supply | DC12V |
| Power Consumption | ≤ 6W (without HDD) |
| Operating Temperature | 14°F ~ 131°F |
| Dimensions | 10.2″ × 8.7″ × 1.8″ |
| Weight | 2.16lb |
NVR, Security Cameras, UniView
Please fill the form and we will reach out to you!
Get Quote

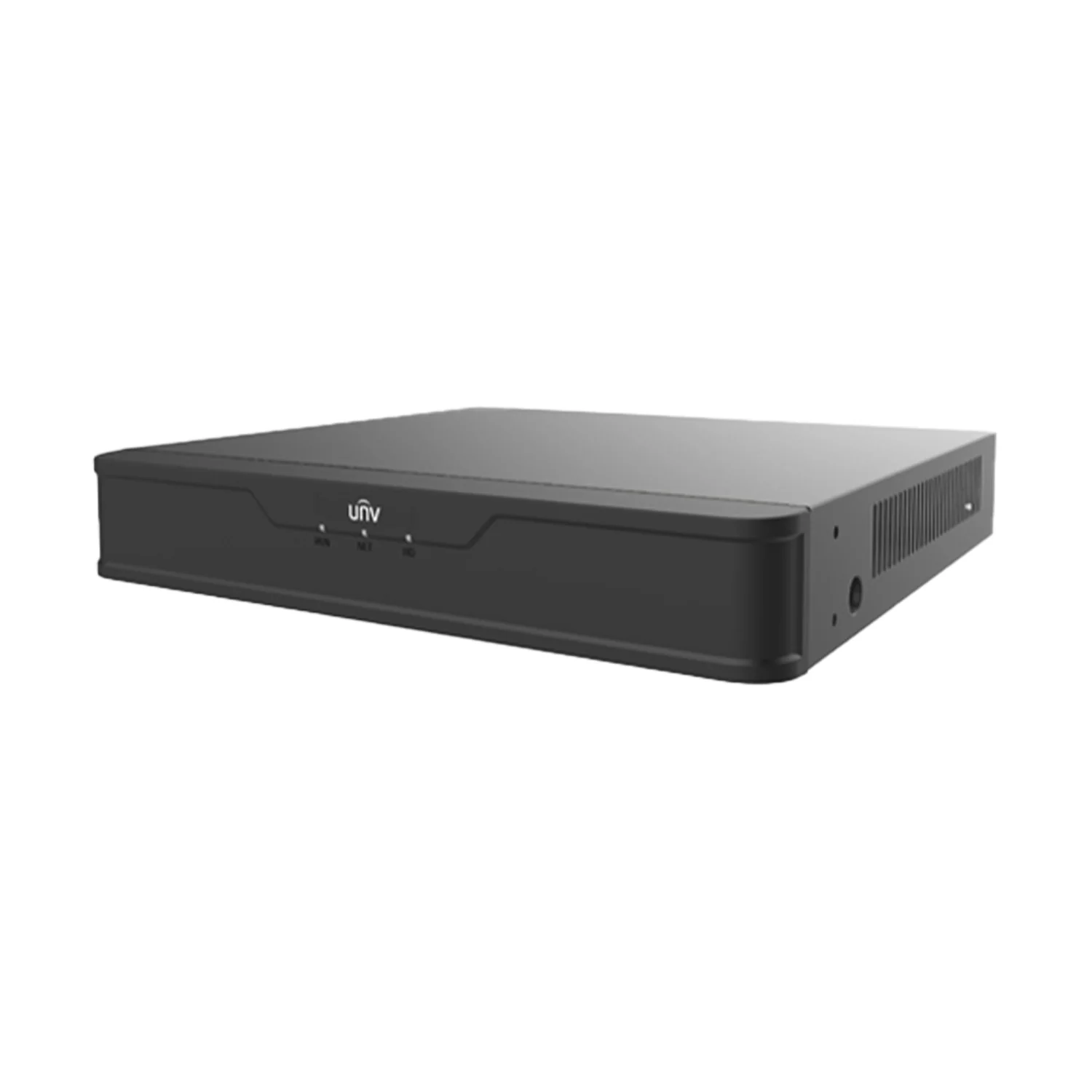

UNV 4K Ultra HD PoE 4-Channel NVR with 1 SATA HDD Bay, NDAA Compliant IP Network Video Recorder (NVR501-04B-P4)
- 4-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Supports 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840×2160) resolution
- Up to 4K Ultra HD (8MP) recording
- Support Ultra 265/H.265/H.264 video formats
- Accurate retrieval and instant playback
- Supports 1 SATA HDD up to 8TB
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
