| SPECIFICATION | DESCRIPTION |
|---|---|
| IP Channels | 32 |
| Max Resolution | 12MP |
| Max Incoming Bandwidth | 384Mbps |
| Max Outgoing Bandwidth | 384Mbps |
| Video Compression | Ultra H.265|H.265|H.264 |
| Hard Drive Slots | 8 |
| Hard Drive Capacity | Up to 10TB each |
| Synchronus Playback | 16ch |
| Audio I/O | 1ch / 1ch |
| Alarm I/O | 16ch / 4ch |
| Onvif Compatible | Yes |
| Power Supply | 100-240VAC |
| Power Consumption | ≤ 25 W (without HDD) |
| Operating Temperature | +14°F~+131°F |
| Dimensions | 17.4″ × 16.8″× 3.5″ |
| Weight | 12.57lbs |
NVR, Security Cameras, UniView
Please fill the form and we will reach out to you!
Get Quote

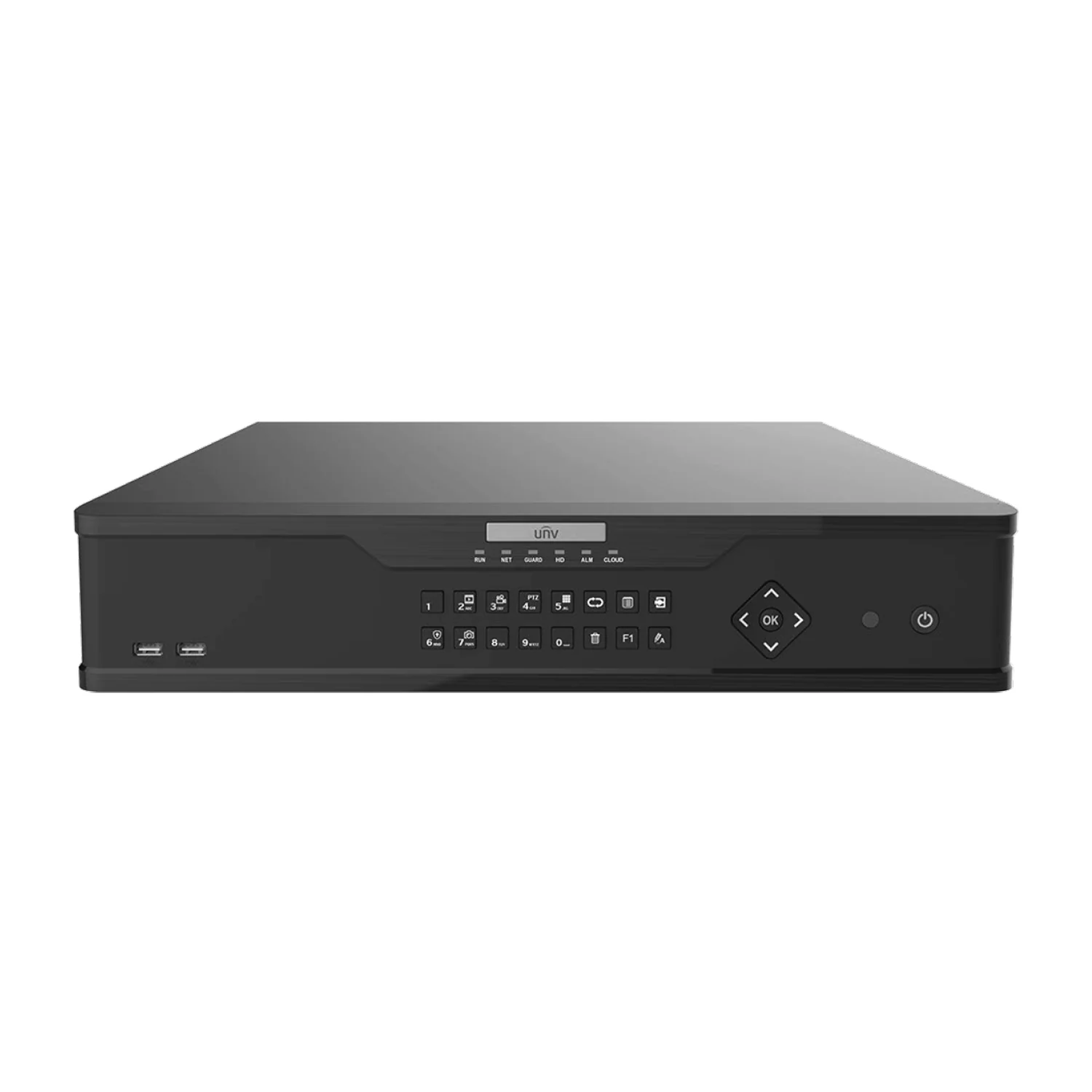

UNV 12MP 32-Channel NDAA-Compliant IP Network Video Recorder with 8 SATA Hard Drive Bays and RAID Data Protection (NVR308-32X)
- Support Ultra H.265/H.265/H.264 video formats
- 32-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

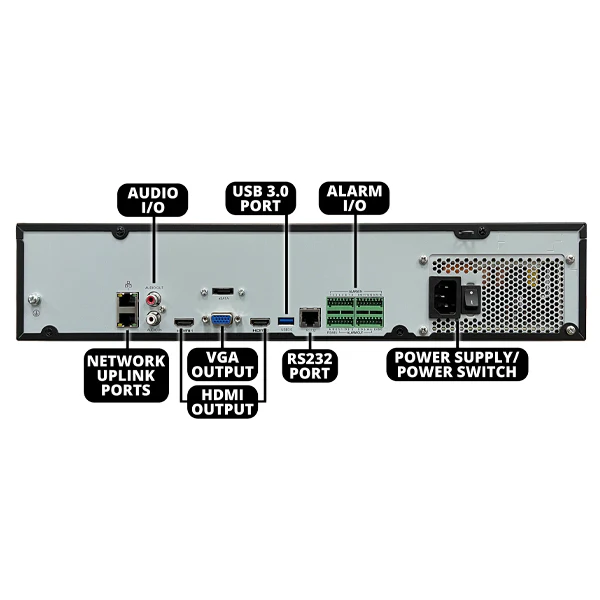

- Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840×2160) resolution
- HDMI1, HDMI2, VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Support RAID 0, 1, 5, 6, 10
- 8 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Support N+1 Hot spare
- Support for 12V Power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
